ESP8266 模块连接emqtt服务器进行远程控制

init.lua文件:

RELAY_Pin = 1
gpio.mode(RELAY_Pin, gpio.OUTPUT)
gpio.write(RELAY_Pin,0)
tmr.alarm(0,4000,0,function()
    dofile("mqtt.lua")
end)

init.lua文件结束

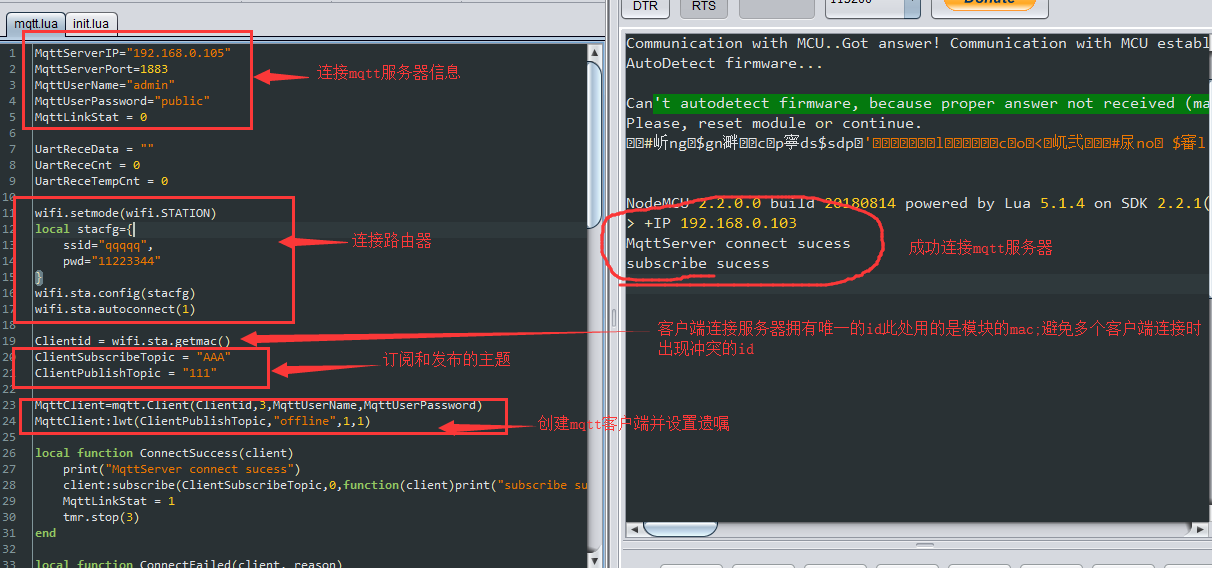

mqtt.lua文件:

MqttServerIP="video.jztx.com"
MqttServerPort=1883
MqttUserName="admin"
MqttUserPassword="public"
MqttLinkStat = 0
UartReceData = ""
UartReceCnt = 0
UartReceTempCnt = 0
wifi.setmode(wifi.STATION)
local stacfg={
    ssid="bobo",
    pwd="18688207700"
}
wifi.sta.config(stacfg)
wifi.sta.autoconnect(1)
Clientid = wifi.sta.getmac()
ClientSubscribeTopic = "/bobo/sub"
ClientPublishTopic = "/bobo/pub"
MqttClient=mqtt.Client(Clientid,3,MqttUserName,MqttUserPassword)
MqttClient:lwt(ClientPublishTopic,"offline",1,1)
local function ConnectSuccess(client)
    print("MqttServer connect sucess")
    client:subscribe(ClientSubscribeTopic,0,function(client)print("subscribe sucess")end)
    MqttLinkStat = 1
    tmr.stop(3)
end
local function ConnectFailed(client, reason)
    print("MqttServer connect fail"..reason)
    MqttLinkStat = 0
    tmr.start(3)
end
tmr.alarm(3, 2000, 1, function()
         MqttClient:connect(MqttServerIP, MqttServerPort, 0,ConnectSuccess,ConnectFailed)
end)
MqttClient:on("offline", function(client, topic, data) tmr.start(3) end)
MqttClient:on("message", function(client, topic, data)
        if(data == "on") then
--            gpio.write(RELAY_Pin,1)
--            if gpio.read(RELAY_Pin)==1 then
--                if MqttClient ~= nil then
                    gpio.mode(8,gpio.OUTPUT)
                    gpio.write(8,gpio.LOW)
                    MqttClient:publish(ClientPublishTopic,"ON-RELAY",1,1,function(client)  end)
--                end
--            end
        end
--
        if(data == "off") then
--            gpio.write(RELAY_Pin,0)
--            if gpio.read(RELAY_Pin)==0 then
--                if MqttClient ~= nil then
                    gpio.mode(8,gpio.OUTPUT)
                    gpio.write(8,gpio.HIGH)
                    MqttClient:publish(ClientPublishTopic,"OFF-RELAY",1,1,function(client)  end)
--                    MqttClient:publish(ClientPublishTopic,"OFF-RELAY",1,1,function(client)  end)
--                end
--            end
        end
uart.write(0,data)
end)

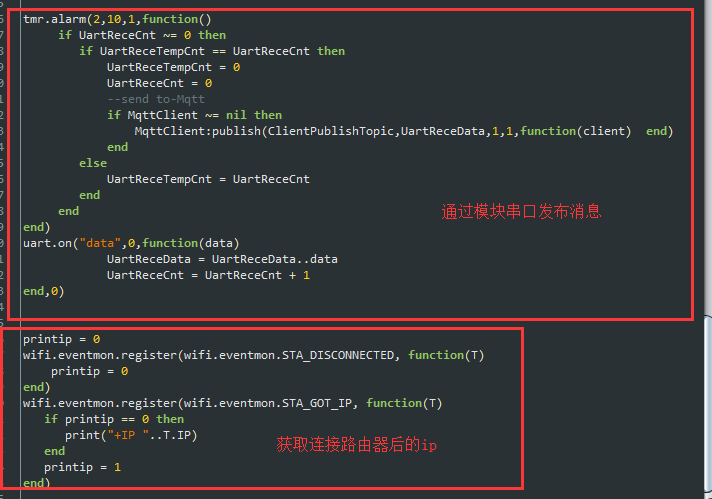

tmr.alarm(2,10,1,function()
     if UartReceCnt ~= 0 then
        if UartReceTempCnt == UartReceCnt then
            UartReceTempCnt = 0
            UartReceCnt = 0
            --send to-Mqtt
            if MqttClient ~= nil then
                MqttClient:publish(ClientPublishTopic,UartReceData,1,1,function(client)  end)
            end
        else
            UartReceTempCnt = UartReceCnt
        end
     end
end)
uart.on("data",0,function(data)
            UartReceData = UartReceData..data
            UartReceCnt = UartReceCnt + 1
end,0)
printip = 0
wifi.eventmon.register(wifi.eventmon.STA_DISCONNECTED, function(T)
    printip = 0
end)
wifi.eventmon.register(wifi.eventmon.STA_GOT_IP, function(T)
   if printip == 0 then
      print("+IP "..T.IP)
   end
   printip = 1
end)

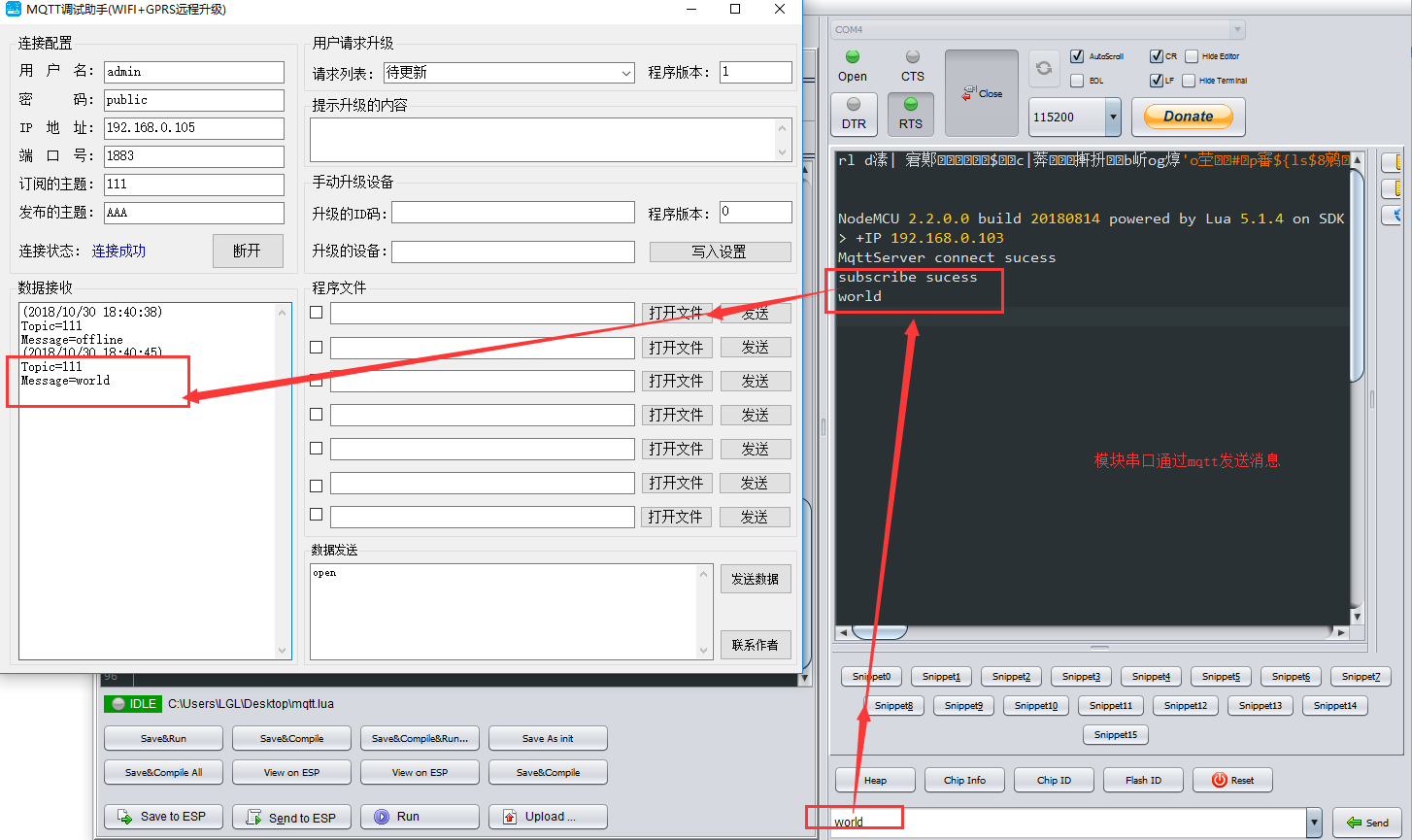

模块通过串口发送数据

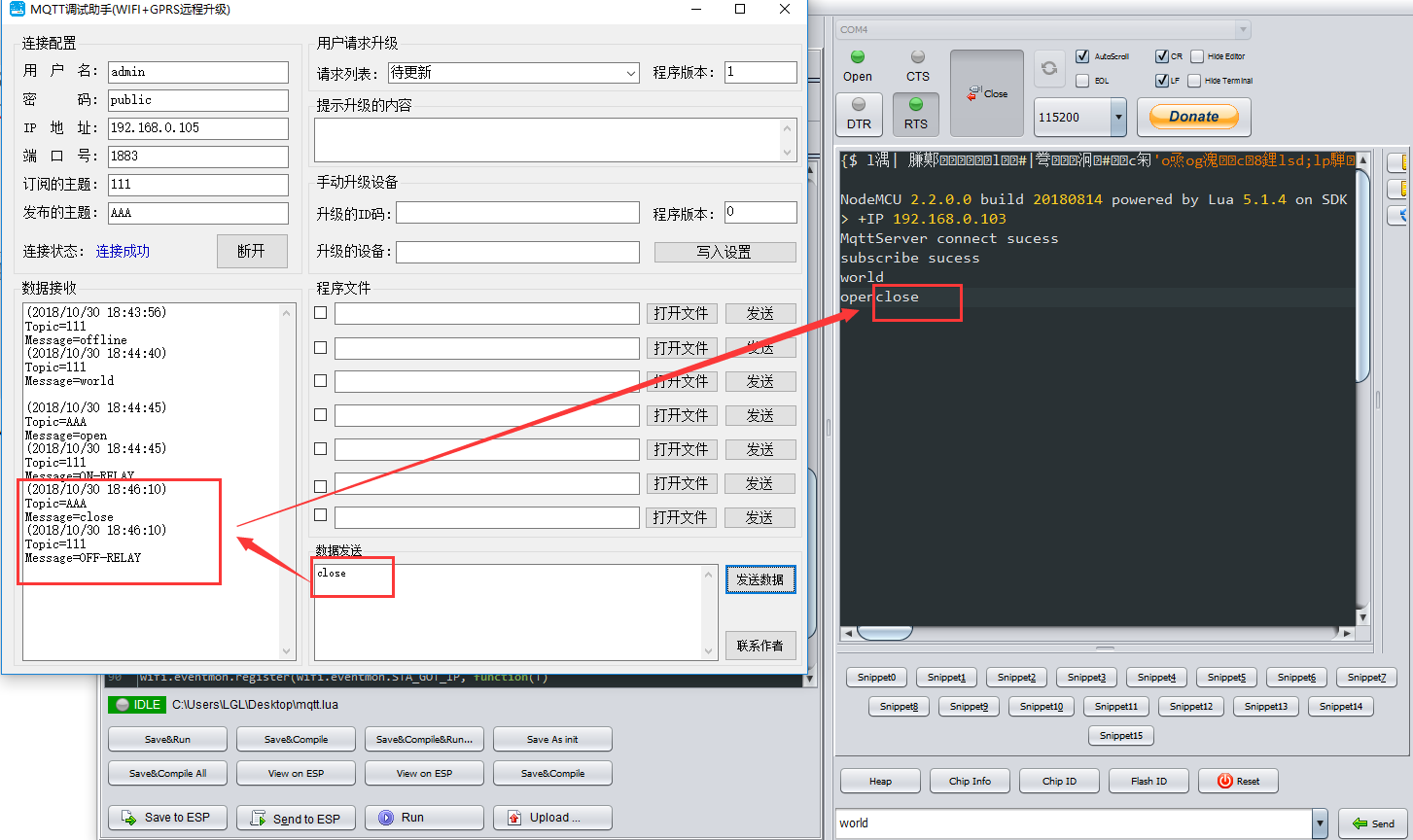

PC客户端发送”open”开继电器

PC客户端发送”close”关继电器
